Overview of ANR series integrated water purifier

The integrated water purification device is applicable to the water purification treatment of rivers, lakes and other surface water with turbidity of 3000mg/l. The turbidity of the effluent can reach 3mg/L, which can be used as domestic drinking water and some industrial water, and is suitable for reuse after advanced treatment of some industrial wastewater and domestic sewage. Due to the integration of purification equipment, a large number of civil engineering installation works are saved, with low investment, low material consumption, small land occupation, short capital construction period, and convenient combination and matching, which is conducive to phased construction, intermittent or continuous operation, stable performance, high treatment rate, and noiseless operation. Technical performance

The equipment is a fully automatic water purification device that integrates the purification processes of condensation reaction, sedimentation, sewage discharge, backwash, filtration, etc. Adopt flocculation reaction and inclined pipe sedimentation

Advanced technologies such as lake and quartz sand filtration. The suspended particles in the raw water will gradually form larger flocs through flocculation reaction by adding chemicals. After sedimentation in the inclined tube, most of the flocs will be removed, and the remaining fine flocs will be further removed by filtration. It is applicable to the purification of water quality of water supply projects in villages, towns, rural areas and independent small industrial and mining enterprises with surface water sources such as rivers, lakes, ponds and reservoirs. The content of suspended solids in influent water is generally not more than 2000mg/L, and the maximum should not exceed 3000mg/L. The turbidity of purified water can reach 1mg/L, and the maximum is not more than 3mg/L. After disinfection, it meets the national drinking water sanitation standard. Water purifier force=0.05MPa, outlet pressure=0.02MPa. Scope of application

1. It is applicable to water plants of rural, urban, industrial and mining enterprises with raw water turbidity less than 3000mg/L and various rivers, lakes, reservoirs and other water sources as the main water purification treatment device.

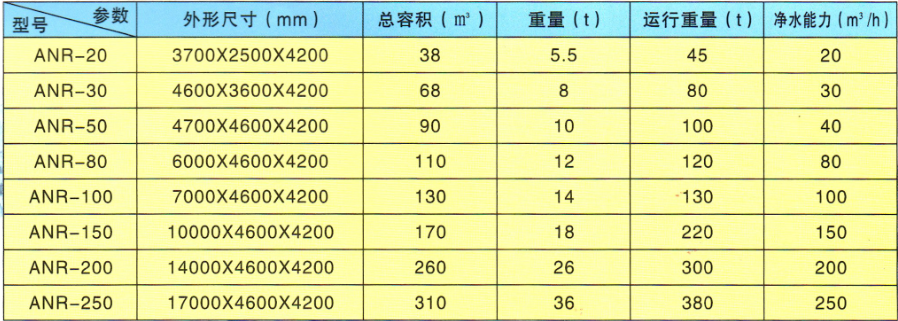

2. It has special adaptability to lake water sources with low temperature, low turbidity and seasonal algae. 3. Pretreatment equipment for pretreatment of high-purity water, beverage industrial water, boiler water, etc. 4. Used in various industrial circulating water systems, it can effectively and substantially improve the quality of circulating water. 5. It is used in the reclaimed water reuse system, which uses the effluent from the sewage plant as the water source and serves as the treatment equipment for purifying and reusing water. Technical specification sheet

Model parameters
